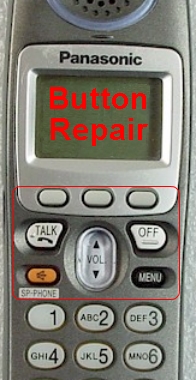

Repair service includes 60 day warranty for the problem it is sent in for	KX-TGA650b Membrane Keypad (for a DIY fix - includes instructions) For the Panasonic KX-TGA650b telephones we have two membrane keypad options What is a membrane keypad? 1) Top keypad This keypad repairs the conductive contacts for the buttons above the dial pad Talk, Off, Speaker, Mute, Volume and the 3 LCD buttons see picture These are the buttons that have common problems 2) Full keypad If you want every button repaired this keypad will do it Most people never have trouble with the dial pad. This option is for people that use those buttons heavily Repair Service - flat fee A membrane keypad is included & installed in every phone we repair Repair price includes labor for any and all problems at one low price This does not include the cost of new parts (if needed) the most common being a broken antenna  Most orders do not need any extra parts and when they do it is usually very obvious (busted antenna) Common problems with this phone: Bad talk path (Speaker & microphone problems) low volume, etc.. Cutting out, resetting, going dead Button problems No charge if we cannot repair your phone! 60 day warranty Please note: The shipping charge in the order is for returning the repaired product to you.  CLICK HERE FOR KX-TGA650b REPAIR

PDF Files
KX-TGA650b Installation Manual
KX-TG6500 KX-TG6502 Operating Instructions

Battery Problems
Phone resetting - Calls cutting out - "Move closer to base"
2 different causes
This video shows what happens when the battery fails in specific Panasonic cordless phones. The LCD will still claim the battery is charged but any time you try to make a call (access the radio) the power drops and the phone resets.


Bad Battery

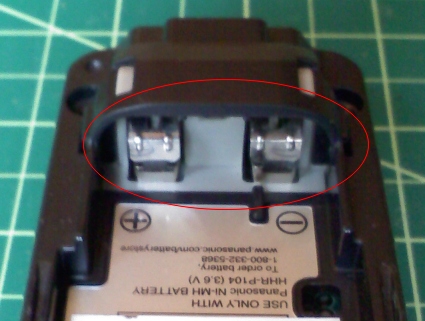

This style battery contact has problems. The contact to the battery is poor and prevents good conductivity. This can reduce the power available to the phone and also cause problems with charging. |

Battery or battery terminals? How to tell.....
Battery: If your phone works fine for a short time after an overnight charge but then starts dropping calls consistently or resets instantly every time you try to answer or make a call then it's likely the battery. A good, fully charged battery should last for several hours on a test intercom call and the phone should never reset, especially with 2 or 3 blocks in the battery level indicator.
Contacts: If the phone resets randomly but still works after the reset without recharging, the problem could be just the battery contacts. Try a test intercom call to the base while leaving the phone alone on a flat surface. If the phone is not moved and the battery can't wiggle then the phone should not reset... if it's the battery contacts causing issues.

Both problems are common!
You could have a combination of both issues. An older battery will experience more problems when used in a phone with boor contacts. Also poor contacts can cause issues with charging the battery in the first place.
